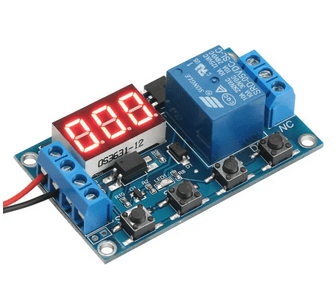

Timer Relay Incubator Turning Motor Controller

Product details of Timer Relay Incubator Turning Motor Controller Turning Control Timer Supply 5-30V 10A Relay

Voltage: DC 5V~36V.

Trigger Signal Source: High voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system’s anti-jamming capability (you can also connect them on common ground).

Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W.

With enhanced heat dissipation, the current can be up to 30A.

Quiescent Current: 20mA

Operating Current: 50mA

Working Temperature: -40~85  Clocking (Time Delay)

Range: 0.1seconds to 999minutes

Size: 60*34*12mm / 2.36*1.33*0.47″
